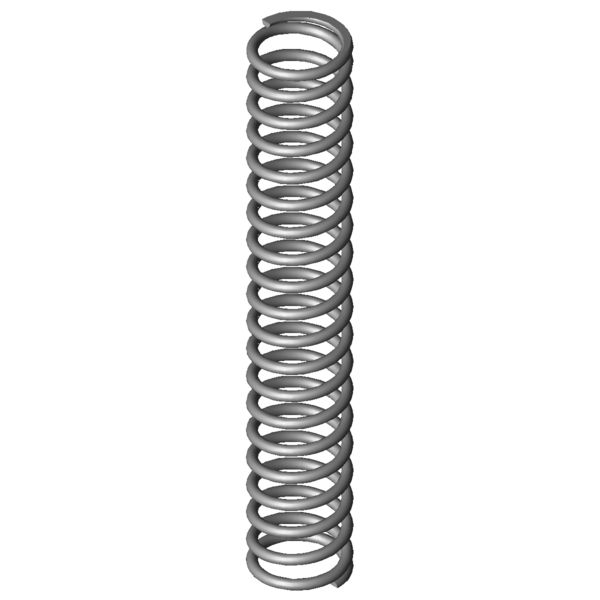

Home » Products » Compression springs » vd-429 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm Scaled prices - Compression spring VD-429 Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 36.2500 EUR 37 33.7800 EUR 75 33.0100 EUR 125 33.0100 EUR 175 33.0100 EUR 250 33.0100 EUR 350 33.0100 EUR Compression spring Buy Product image Compression spring VD-429 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-429 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 10 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 90 mm Outer coil diameter Dd 68 mm maximum diameter of mandrel Dh 93 mm minimum diameter of bush L0 540 mm unstressed spring length Lk 381.16 mm buckling length Fn 2759.686 N maximum force in static use Ln 241.26 mm Minimum length in static use sn 298.74 mm Maximum spring deflection in static use Fndyn 2592.206 N maximum force in dynamic use Lndyn 259.39 mm Minimum length in dynamic use shdyn 35.4 mm Maximum stroke in dynamic use S 28.649 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 9.238 N/mm Spring rate Weight 3198.6303 g weight of one spring Fntol 139 N (+/-) tolerance of maximum force in static use Fndtol 136 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 8.51 mm (+/-) tolerance of unstressed spring length Price group #BG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm Metal spring characteristic download pdf file CAD data Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm force-path-calculation Compression spring VD-429 Inquiry formular Compression spring VD-429 Stainless steel Ø 10 x 80 x 540 mm Inquiry formular Compression spring VD-429 Customs tariff number: 73202081; Compression spring VD-429 Country of origin: DE, German; Compression spring VD-429 Product image - Compression springs VD-429 QR-Code: Compression spring VD-429
