Compression spring D-134 Spring steel Ø 0.8 x 5 x 12 mm

Name: D-134 - Compression springs
SKU: D-134
Availability: InStock

Scaled prices - Compression spring D-134

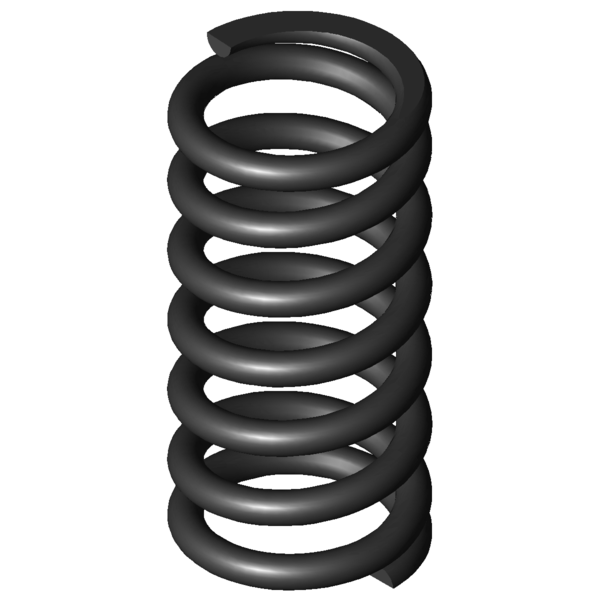

Product image Compression spring D-134

Quantity:Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.8	mm	Wire diameter
Di		mm	Inner coil diameter
D	5	mm	Mean coil diameter
De	5.8	mm	Outer coil diameter
Dd	3.8	mm	maximum diameter of mandrel
Dh	6.3	mm	minimum diameter of bush
L0	12	mm	unstressed spring length
Lk		mm	buckling length
Fn	32.182	N	maximum force in static use
Ln	6.7	mm	Minimum length in static use
sn	5.3	mm	Maximum spring deflection in static use
Fndyn	30.044	N	maximum force in dynamic use
Lndyn	7.05	mm	Minimum length in dynamic use
shdyn	2.51	mm	Maximum stroke in dynamic use
S	2.036	mm	pitch of spring
n	5.5	pc.	number of active coils
nt		pc.	total number of coils
R	6.07	N/mm	Spring rate
Weight	0.4681	g	weight of one spring
Fntol	2.81	N	(+/-) tolerance of maximum force in static use
Fndtol	2.78	N	(+/-) tolerance of maximum dynamic force
Detol	0.2	mm	(+/-) tolerances of outer coil diameter
L0tol	0.38	mm	(+/-) tolerance of unstressed spring length
Price group	C	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force
